PRODUCT SPECIFICATION

Display Type  OLED display

SpO2  Measurement range ：70%～100%

           Accuracy：70%～100%:±2% (Including 70%);

                             Below 70% no requirement;

           Resolution：1%

 PR  Measure range:25BPM～250BPM

        Accuracy:± 1 BPM or ± 1%,(larger)

        Resolution:1BPM

ENVIRONMENT&PACKAGING INFORMATION

Operation environment

Temperature:5℃～40℃

Humidity:15%RH～80%RH,no condensing

Atmospheric pressure:86kPa～106kPa

Transport, storage environment:

Temperature:-20 ℃ ~ 55 ℃

Humidity:≤90%RH,no condensing

Atmospheric pressure:50kPa~106kPa,non-corrosive gas and well-ventilated environment

Power Requirements

Internal lithium battery：DC 3.7V；

Adapter：Input AC 100-240V 50/60Hz Output DC5.0V

Weight   59*33*31mm±1mm

 PRODUCT FEATURES

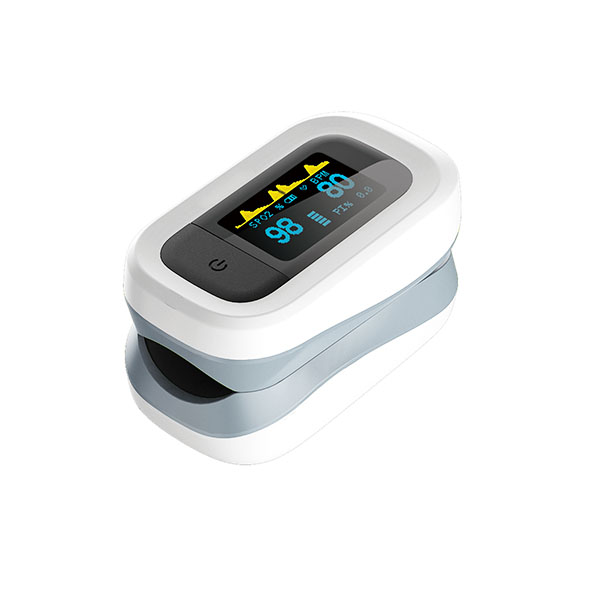

●Display mode：Waveform and digital display

●Low voltage indicator

●When no signal is generated, the product will enter the standby state after 8 seconds

●Small in volume, light in weight, and convenient to carry.

——————————————————————————————————————————————————————————————————————————————
